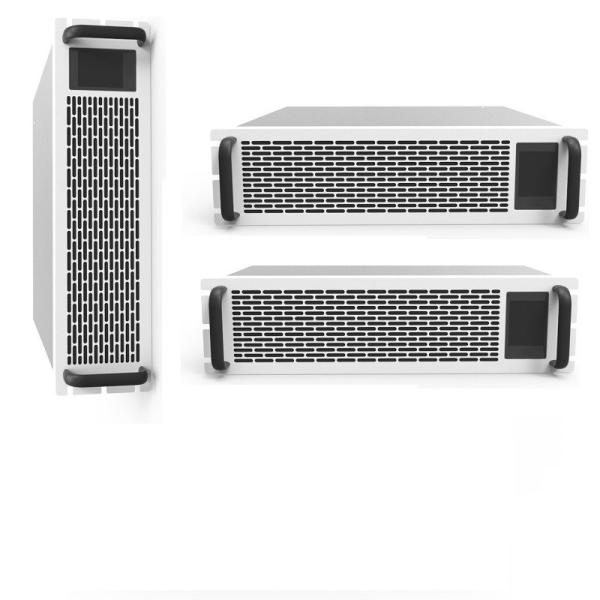

AC DC Bidirectional 30kW Wide Voltage Group Series Energy Storage Converter
Solutions of Group and Series Energy Storage Converter
Distributed Energy Storage Solution
ANE innovative distributed energy storage solutions are incomparable solutions for energy storage in general industrial and commercial applications.
The core of the scheme is distributed energy storage cabinet, which is composed of Group Strings energy storage converter and high energy density battery pack, and can be distributed in the distribution room nearby, and can realize centralized control and unified deployment through wireless communication.
Features
- With its own monitoring system, touch screen can be external, can be convenient to build a small energy storage system.
- Wide DC voltage design: 200V ~ 900V, can charge and discharge in the range of 280V ~ 900V.
- Adaptable to a variety of grid voltages: AC 220V/230V/240V/380V/400V/415V
- Can be used off-grid, with strong load adaptability, perfect for all types of load, including half-wave load, impact load.
- Perfect Matching Power Battery Cascade Utilization Application Scene.
Specifications
| Model class | | NESI-30KW2 |
| DC parameter | Battery charge/discharge voltage | DC200V～DC900V(DC280V Full Power) |
| Nominal power | 30kW |
| Maximum current | 110A |
| DC channel number | 1/2/3 |
| Charge management | Three-stage charge |
| AC on-grid parameter | Grid type | 3P+PE/3P+N+PE |
| Nominal power | 30kW |
| Nominal voltage | AC220V/230V/240V/380V/400V/415V |
| Maximum current | 45A |
| Voltage range | -15%～+15% |
| Nominal frequency | 50Hz/60Hz |
| Frequency range | ±3Hz |
| PF | 1 |
| Output harmonic | ≤3% |
| AC off-grid parameter | Connection mode | 3L+PE / 3L+N+PE |
| Nominal power | 30kW |
| Nominal voltage | AC220V/230V/240V/380V/400V/415V |
| Nominal frequency | 50Hz/60Hz |
| Maximum current | 45A |
| Voltage accuracy | 1% |
| Frequency accuracy | 0.2Hz |
| Input regulation | 1% |
| Load regulation | 1% |
| Output harmonic | 3%@Line full Power |
| dynamic response | 60ms@100%Line load |
| Unbalanced load capacity | 100% |
| Overload Capability | ≤105%, Long running；(105,110%),10min；(110,120),1min；>120%,stop working； |
| environment | Working temperature | -25℃～55℃(≥45℃ output power reduction) |
| Storage temperature | -40℃～70℃(no battery) |
| Relative humidity | 0％RH～95％RH,no condensation |
| Working altitude | 45℃时,2000m(no influence),2000m～4000m output power reduction |
| Noise | ＜68dB |
| Communication and management | Communication interface | RS485,CAN,LAN,REPO |
| Communication agreement | CAN,ModBus TCP,ModBus RTU |
| installation | | Wall Hanging |
| Peak efficiency | 97.1% |
| EMC | Class A |
| certification | G59 |
| Isolation | Non-isolation |
| Enclosure | | IP32 |
| Cooling | Forced air cooling with replaceable fan module |
| Size (W*H*D)(mm) | | 460*190*750 |
| Weight | | 45 |
All performance and parameters shall be subject to the latest confirmation of our technical departmen
At present, there are some pain points in the application of energy storage industry, such as safety concerns, profit difficulties, engineering load, layout constraints. ANE innovative distributed energy storage solution has thoroughly solved the above pain points.
Cascade Battery Utilization Solution
- One channel connected to one battery cluster, One channel connected to two battery clusters, One channel connected to three battery clusters, direct matching of cascade battery packs by NESI-30K wide voltage Group Strings PCS (DC voltage range 200-900V), without unpacking battery pack and series-parallel connection of battery packs.
- Centralized control of multiple 30kW with two-stage topology PCS AC side in parallel.
This scheme greatly reduces the difficulty of power battery cascade utilization and has excellent economy performance.
Energy storage and backup UPS solution
- Energy storage backup UPS usually cuts the peak and fills the valley, and supplies power to the equipment replacing the online UPS protection when the city power is abnormal.
- Reduces lead-acid battery usage in online UPS
